asset_preparation::v3::surface_source::SurfaceSourceProperties Struct Reference
Last update: 16.07.2025The properties of a surface source. More...

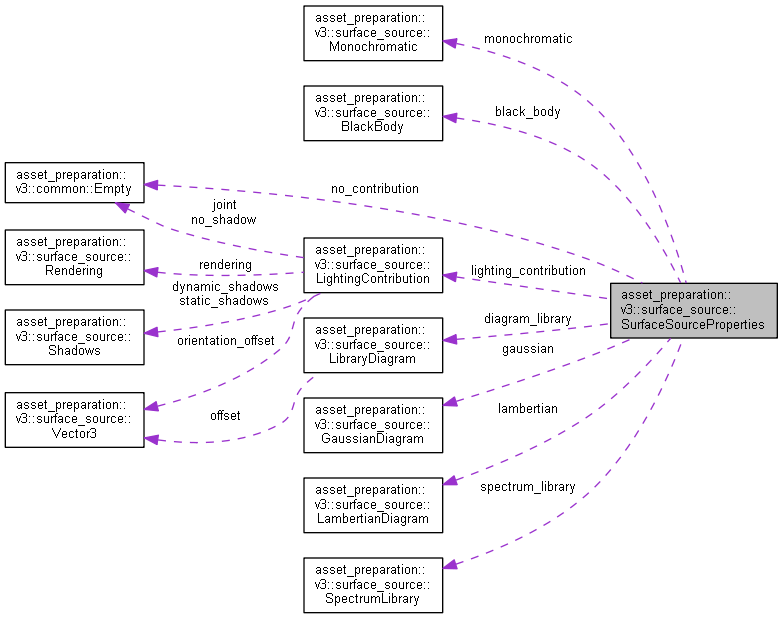

Collaboration diagram for asset_preparation::v3::surface_source::SurfaceSourceProperties:
Public Attributes | |
| google::protobuf::DoubleValue | flux = 1 |
| google::protobuf::DoubleValue | angular_precision = 2 |
| LambertianDiagram | lambertian = 3 |
| LibraryDiagram | diagram_library = 4 |
| GaussianDiagram | gaussian = 5 |
| google::protobuf::BoolValue | reverse_direction = 6 |
| common::Empty | no_contribution = 7 |
| LightingContribution | lighting_contribution = 8 |
| SpectrumLibrary | spectrum_library = 9 |
| BlackBody | black_body = 10 |
| Monochromatic | monochromatic = 11 |
Detailed Description
The properties of a surface source.
Member Data Documentation
◆ flux
| google::protobuf::DoubleValue asset_preparation::v3::surface_source::SurfaceSourceProperties::flux = 1 |
The surface source flux.
Unit: lumen (lm)
- Note
- Must be positive.
- The default value is 500.
◆ angular_precision
| google::protobuf::DoubleValue asset_preparation::v3::surface_source::SurfaceSourceProperties::angular_precision = 2 |
The angular precision.
Unit: Degree
- Note
- Must be positive.
- The default value is 0.
◆ lambertian
| LambertianDiagram asset_preparation::v3::surface_source::SurfaceSourceProperties::lambertian = 3 |
ONEOF(angular_diagram) Intensity based on a lambertian angular diagram.
◆ diagram_library
| LibraryDiagram asset_preparation::v3::surface_source::SurfaceSourceProperties::diagram_library = 4 |
ONEOF(angular_diagram) Intensity based on a library angular diagram.
- Note
- This is the default type of angular diagram.
◆ gaussian
| GaussianDiagram asset_preparation::v3::surface_source::SurfaceSourceProperties::gaussian = 5 |
ONEOF(angular_diagram) Intensity based on a gaussian angular diagram.
◆ reverse_direction
| google::protobuf::BoolValue asset_preparation::v3::surface_source::SurfaceSourceProperties::reverse_direction = 6 |
Whether the direction of the surface source is reversed.
◆ no_contribution
| common::Empty asset_preparation::v3::surface_source::SurfaceSourceProperties::no_contribution = 7 |
ONEOF(contribution) The surface source does not contribute to lighting.
- Note
- This is the default value.
◆ lighting_contribution
| LightingContribution asset_preparation::v3::surface_source::SurfaceSourceProperties::lighting_contribution = 8 |
ONEOF(contribution) The lighting contribution of the surface source.
◆ spectrum_library
| SpectrumLibrary asset_preparation::v3::surface_source::SurfaceSourceProperties::spectrum_library = 9 |
ONEOF(spectrum) Spectrum based on a spectrum file.
- Note
- This is the default spectrum type.
◆ black_body
| BlackBody asset_preparation::v3::surface_source::SurfaceSourceProperties::black_body = 10 |
ONEOF(spectrum) Spectrum based on a black body.
◆ monochromatic
| Monochromatic asset_preparation::v3::surface_source::SurfaceSourceProperties::monochromatic = 11 |
ONEOF(spectrum) Monochromatic spectrum.
The documentation for this struct was generated from the following file:
- surface_source_description.proto
