asset_preparation::v3::material::LambertianLayer Struct Reference
Last update: 16.07.2025The properties of the lambertian layer. More...

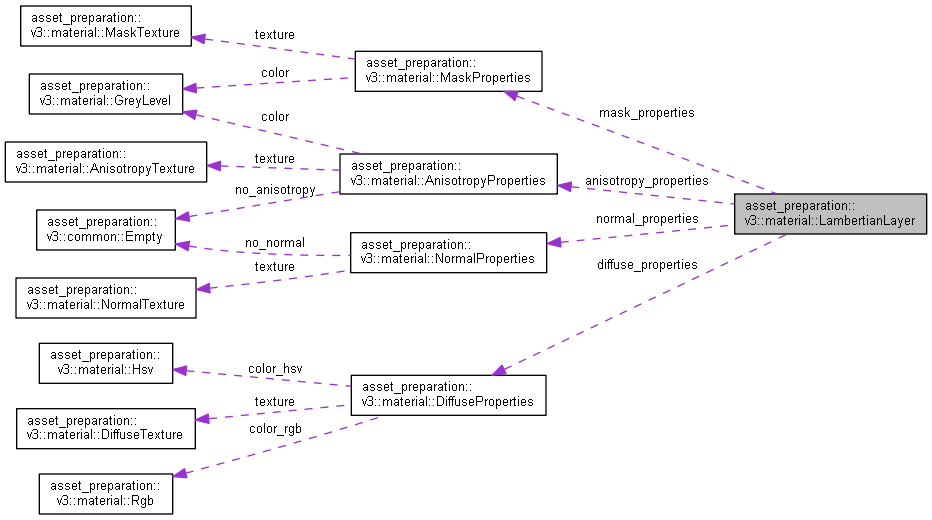

Collaboration diagram for asset_preparation::v3::material::LambertianLayer:
Public Attributes | |
| google::protobuf::DoubleValue | absorption = 1 |
| DiffuseProperties | diffuse_properties = 2 |
| NormalProperties | normal_properties = 3 |
| AnisotropyProperties | anisotropy_properties = 4 |
| MaskProperties | mask_properties = 5 |
Detailed Description
The properties of the lambertian layer.
Member Data Documentation
◆ absorption
| google::protobuf::DoubleValue asset_preparation::v3::material::LambertianLayer::absorption = 1 |
The Lambertian absorption.
Unit: Percentage (%)
- Note
- Must be a double in the range [0,100].
- The default value is 0.
◆ diffuse_properties
| DiffuseProperties asset_preparation::v3::material::LambertianLayer::diffuse_properties = 2 |
The diffuse properties.
◆ normal_properties
| NormalProperties asset_preparation::v3::material::LambertianLayer::normal_properties = 3 |
The normal properties.
◆ anisotropy_properties
| AnisotropyProperties asset_preparation::v3::material::LambertianLayer::anisotropy_properties = 4 |
The anisotropy properties.
◆ mask_properties
| MaskProperties asset_preparation::v3::material::LambertianLayer::mask_properties = 5 |
The Mask properties.
- Note
- Layer 1 must not contain a Mask.
The documentation for this struct was generated from the following file:
- material_description.proto
