Thermal-Electric Analysis Extension
1.3.1

Supported Ansys versions:

2023 R2,
2024 R1,
2024 R2,
2025 R1,
2025 R2

Required Product:

Mechanical

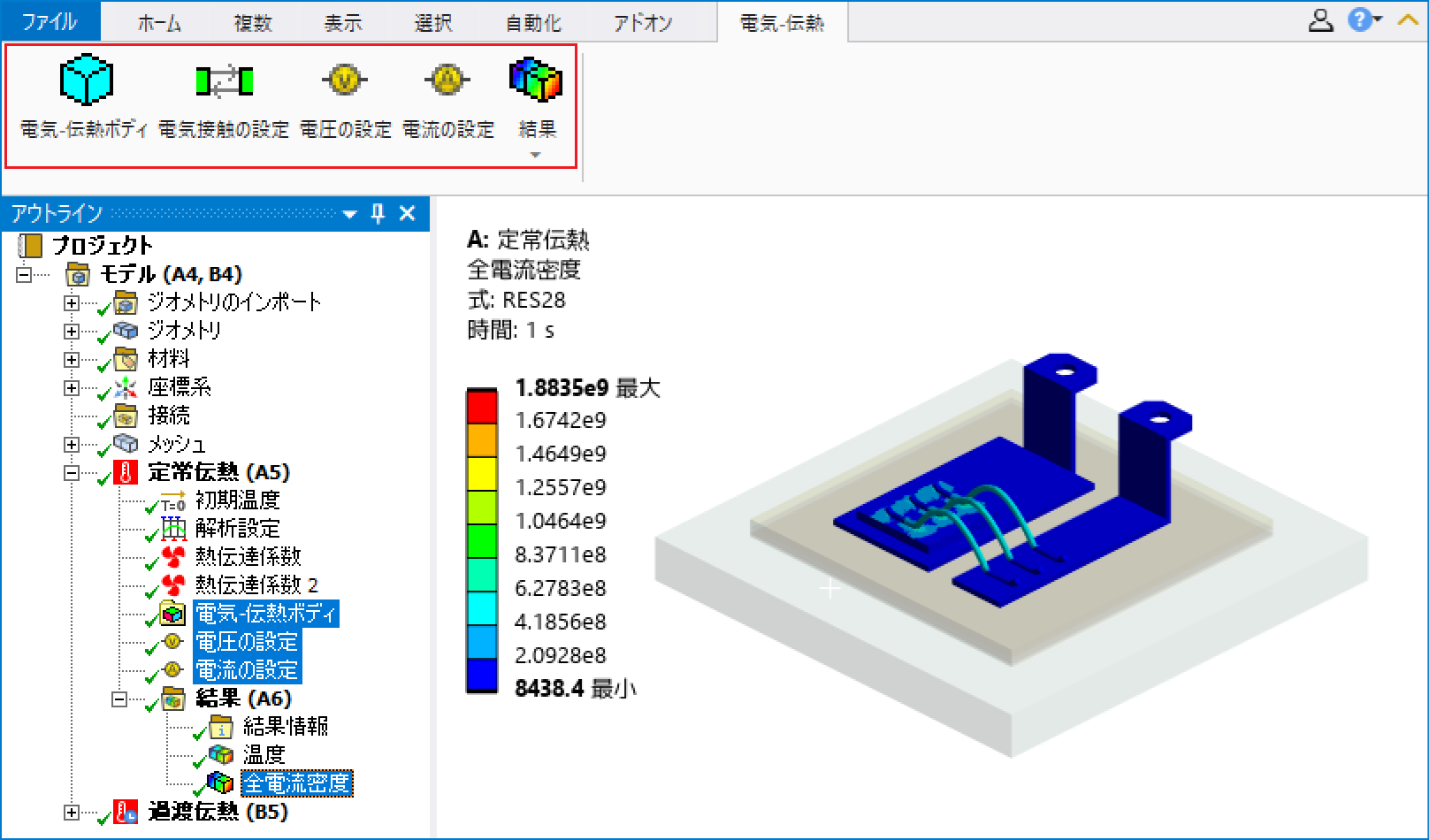

This is an extension tool that allows you to set up menus for thermal-electric coupled analysis using SOLID69 on the Mechanical GUI.

Download

You will be taken to an external site to complete the download.

App Description

Previously, the Mechanical Enterprise license was required for coupled thermal-electric analysis. However, starting with 2020R2, the Mechanical Pro / Premium license also enables thermal-electric analysis using the legacy SOLID69 element.

However, since this is not a standard feature, it requires cumbersome configuration involving command input. Therefore, this tool provides a dedicated menu for SOLID69 thermal-electric analysis on the user interface, enabling easy setup.

※ The following limitations apply due to the use of SOLID69

Only Joule heating thermoelectric effects can be considered
Only low-order elements are supported for meshing

Key Benefits

The thermal-electric coupled analysis can be configured using the [thermal-electric] system from the standard menu with the Mechanical Enterprise license.

While Mechanical Premium/Pro licenses also support thermal-electric analysis using the legacy SOLID69 element, this is not a standard feature. Configuration requires command input, making the process cumbersome.

Therefore, this tool adds a dedicated menu to the Mechanical interface for SOLID69 thermal-electric analysis, enabling easy configuration.
